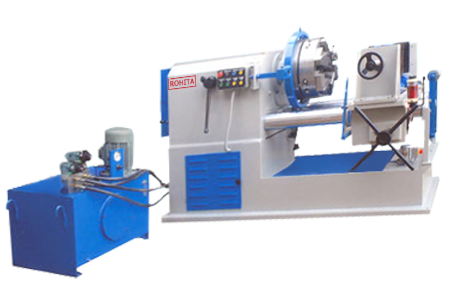

Pipe Threading with Hydralic Clamping

Size in Inches : 1/2" to 2.1/2" ,  1" to 4" ,  2.1/2" to 6" ,  4" to 8" . Size in MM  :12mm to 65mm , 25mm to 105mm , 50mm to 155mm , 100mm to 205mm .

The Pipe Threading Machines are designed to give maximum efficiency and reliable performance under the most severe conditions of service with minimum Conditions of severe with minimum maintenance . all the necessary requirements are combined in this model to from the basic fundamentals of correct threading. All the gears are made of case hardened steel with extra large face with and tooth thickness and cut on hobbing machine for noiseless operation even at high speed. Naturally they are built with high standard of workmanship, material and quality so closely associated with COMPANY TRADITION .

Head Stock : The Head Stock is of top quality casting providing support to the spindle bearing. The Spindle Swing taper roller bearing are of best steel with a ground finish to give accurate results. Gears of head stock are running oil bath with oil level window .

The Bed :The bed is pillar type having two pillar made of best steel , nicely ground & hard chrome plated and also aligned accurately to the head stock alignment .

The saddle :The saddle is fitted on two pillars very precisely , it run on pillars very smoothly and accurately to the head stock alignment.

The Apron :The Apron gives movement to the saddle towards head trevers along with pillars through steel rack and pinion arrangements. Its all gear are made of best steel.

Vice Jaws:The Vice jaws are fitted on the saddle with best steel hard chrome plated rods accurate . The jaws are made of best steel and are well hardened . The movements of jaws are controlled by a screw on the saddle .

Sr. No.
          Pipe Nominal Bore
Spindle RPM App.
Pipe Threading Power HP
Required RPM
1
            1/2" to 2-1/2" PVC
           137 & 182
3
1000
2
            1/2" to 2-1/2"
            60 , 90 & 120
7.5
1500
3
            1/2" to 4"
            40 , 75 & 115
10
1000
4
            2-1/2" to 6"
            25 & 40
15
1000
5
            1/2"" to 21/2"" scaffolding
            40, 60 & 80
7.5
1000
6
            2-1/2"; to 6" PVC
            32, 48, 69 & 97
10
1000
7
            4" to 8" PVC
            25, 36 & 47
20
960
Sr. No.
            Pipe Nominal Bore
Spindle RPM App.
End Facing Machine Power HP
Required RPM
1
          1/2" to 2-1/2"
          120, 175, & 240
                   3
1500
2
          1/2" to 6"
          40, 75, 115
                    5
1000
3
          21/2" to 6"
          60, 75 & 90
                    7.5
1000
